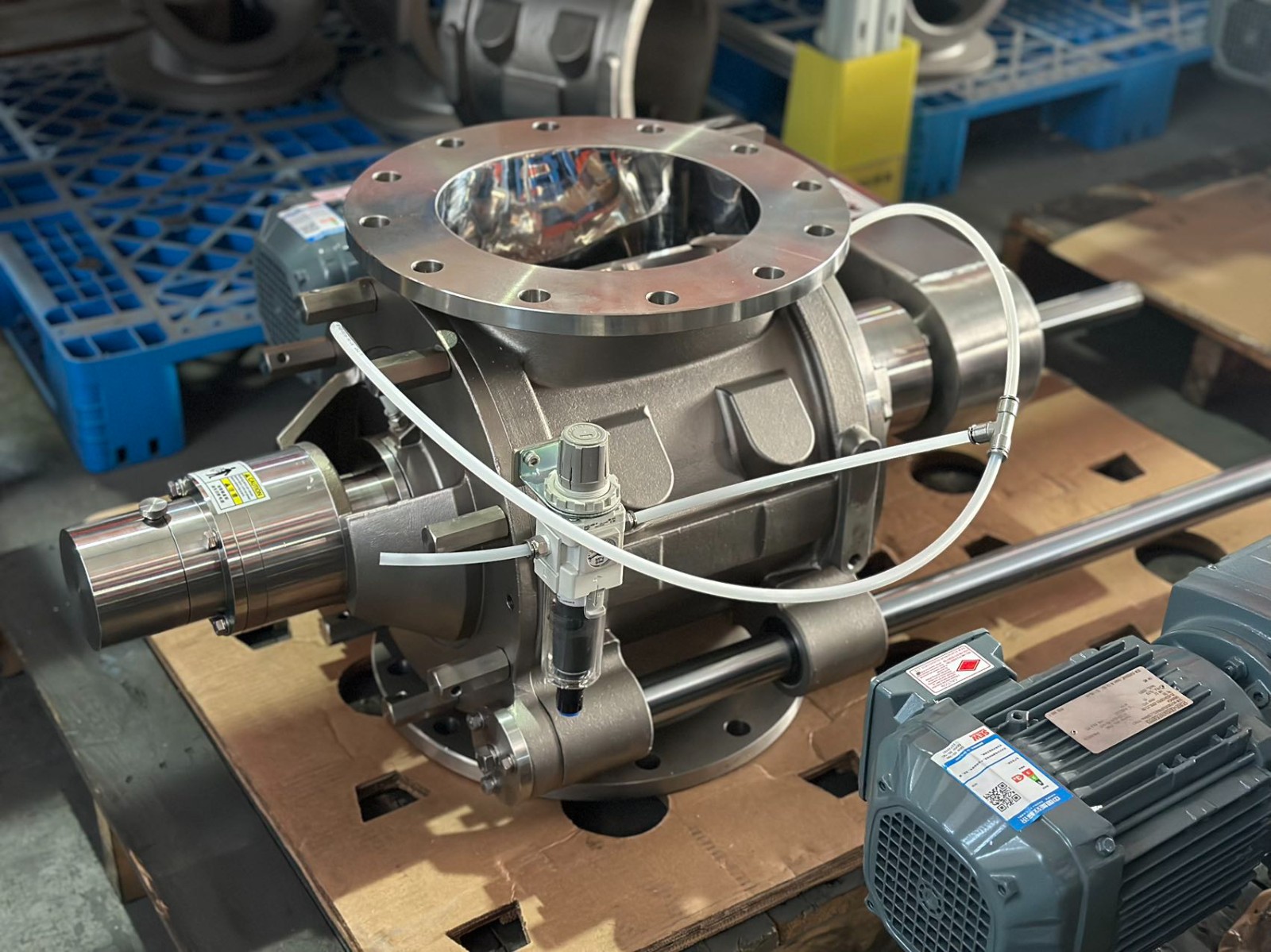

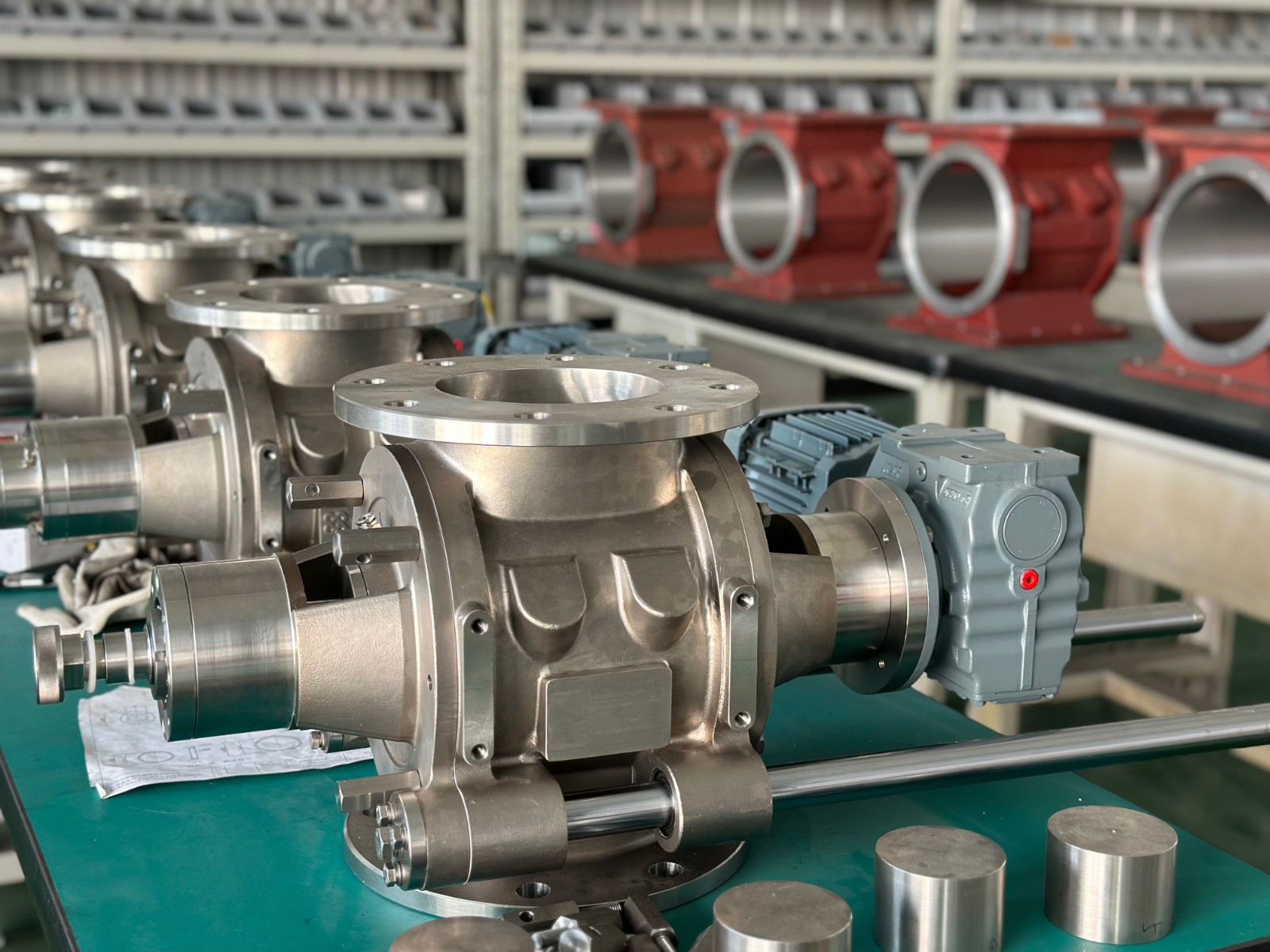

Fast clean rotary valve

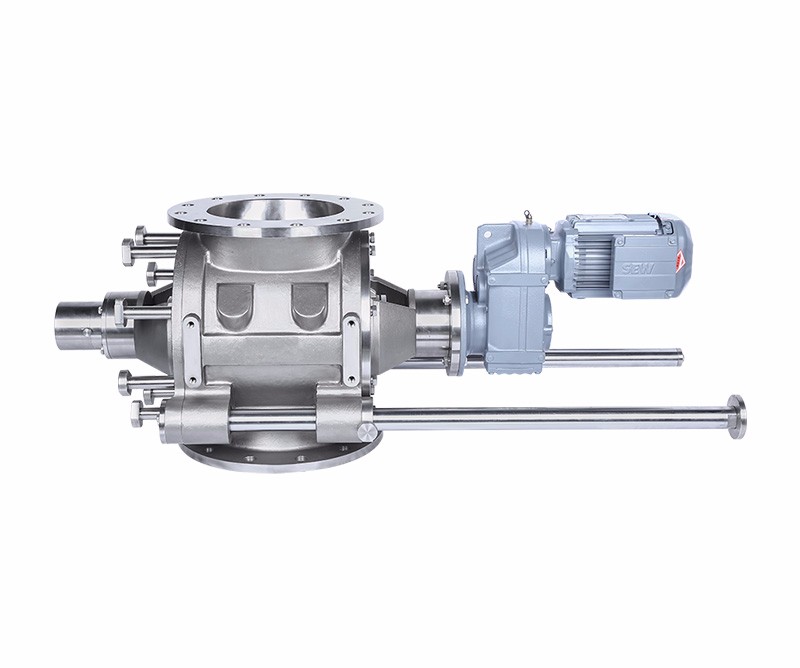

Rotary valves & AirlocksPowder Handling Solution：A rail system makes it much easier to clean the rotor, perform maintenance or repairs, adjust the rotor tips, and inspect the valve's internals.
Structure of High pressure rotary valve RQC
Features and Function
| Options
| ||
• | Available in 4 flange diameters from 150mm to 300mm; | • | 304, 316,304L,316L cast stainless steel valve housing |
• | Standard Valves manufactured in Stainless Steel 304 | • | 6 vane, 10 vane or 12 vane rotor. |
• | Heavy duty slide rail assembly | • | Rotor design: close ended, radius pocket, scalloped, |
• | Twin track linear bearing assembly | • | Replaceable rotor wear tips |
• | Drilled flanges in accordance with GB PN10, ANSI 150#, | • | Interior coatings: hard chrome, tungsten, and Teflon |
• | Outboard bearings are standard and a full range of | • | Air purge shaft sealing |
• | Pressure differentials up to 1.5bar (21PSI). | • | Valve housing vent ports |

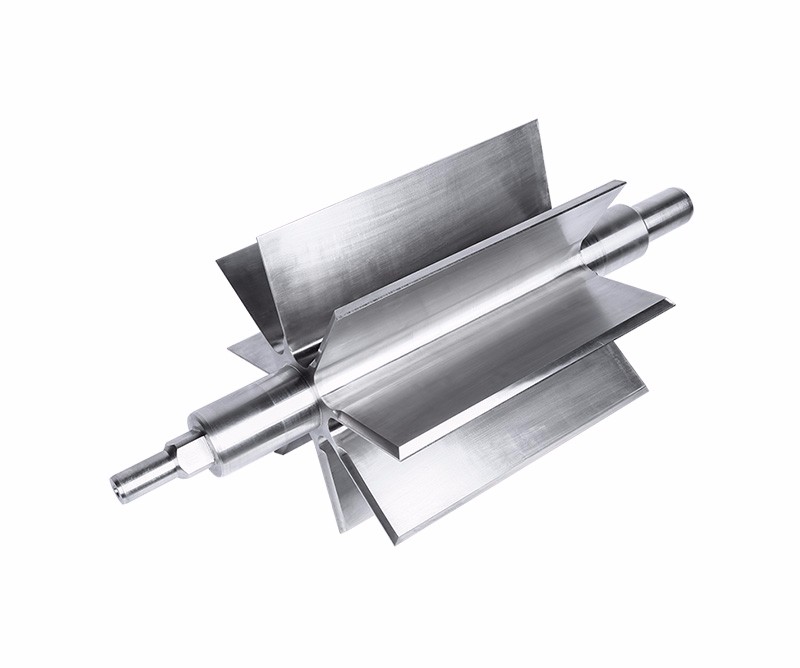

• | Open ended rotor with 8 vans | • | Accessories: Drop-out box, speed monitor, vent box, |
Dimensions of RQC
Volumetric Capacity
Model | Ltr/Rev | Inlet*/Outlet | Other Dimensions | ||||||||||||||
Ø A | Ø B DIN | Ø C DIN | D DIN | Ø B ANSI | Ø C ANSI | D ANSI | E | H | F | G | S | T | X | Y | *Z | ||
RQC 150 | 4 | 150 | 240 | 285 | 8 x Ø 22 | 241.3 | 279 | 8 x Ø 22.2 | 15 | 320 | 245 | 265 | 885 | 320 | 152 | 37.5 | 1" |
RQC 200 | 10 | 200 | 295 | 340 | 8 x Ø 22 | 298.4 | 343 | 8 x Ø 22.2 | 15 | 380 | 275 | 305 | 945 | 350 | 187 | 55 | 1¼" |
RQC 250 | 18 | 250 | 350 | 395 | 8 x Ø 22 | 361.9 | 406 | 8 x Ø 25.4 | 18 | 440 | 322 | 355 | 1040 | 420 | 220 | 65 | 1¼" |
RQC 300 | 30 | 300 | 400 | 445 | 8 x Ø 22 | 431.8 | 483 | 8 x Ø 25.4 | 23 | 520 | 365 | 405 | 1180 | 465 | 259 | 85 | 1¼" |
*Note: Technical modification are possiblem dimensions in mm | |||||||||||||||||
